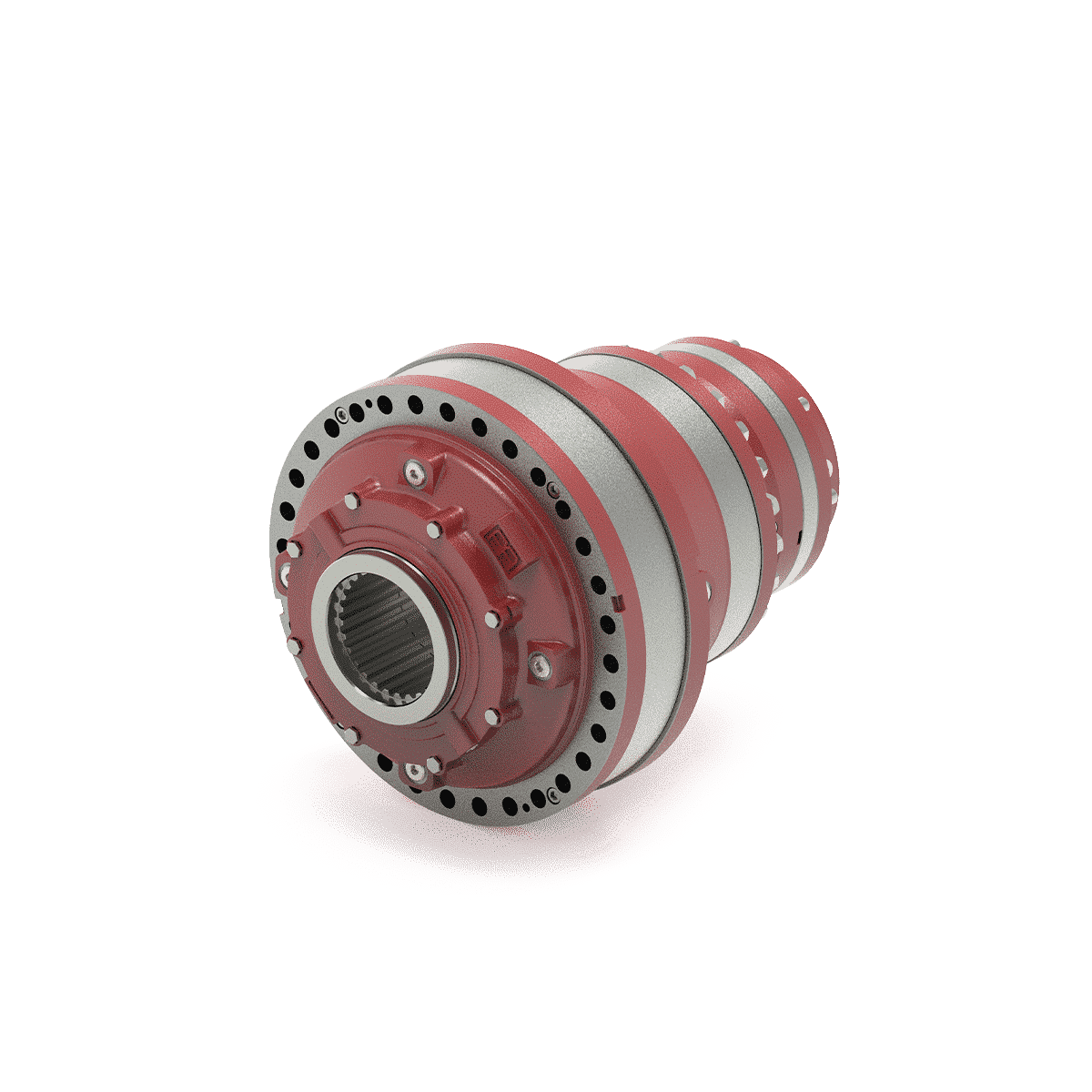

PLUS SERIES

Planetary gearboxes

Plus Series planetary gearboxes are suitable for every application, particularly successful in the mining, marine and industrial sectors.

This range represented a technological revolution for planetary transmission, which is expressed in the 18 sizes available – from 25000Nm to 2400000Nm – the result of new studies to give maximum performance while maintaining very compact dimensions and an unparalleled price-to-performance ratio.

Download

Download files with all product information
  • Flange or shaft mounting
  • Coaxial or bevel helical input with the output
  • Modular composition from 1 to 4 reduction stages
  • Male splined shaft
  • Solid cylindrical shaft with key
  • Hollow shaft with external shrink disk
  • Female splined hollow shaft
  • Possibility of customization
  • Optimal weight-to-power ratio
  • Ground planetary gears
  • High transmissible torque

T2 MAX range ( 37000 ÷ 950000 Nm ) Linear ratio range ( 4.00 ÷ 2495.56 ) Bevel ratio range ( 10.27 ÷ 2072.53 )

  • Wide range of reduction ratios obtainable
  • Accessories for male output shaft
  • Wide range of couplings for hydraulic and electric motors
  • Cylindrical shaft input
  • Multi-disc negative parking brakes
  • Foot mounted
  • Reaction arm
  • Taconite sealing for harsh and dusty environments
  • External cooling unit
  • ATEX II 2D certification
  • DNV type approval

Markets

Reggiana Riduttori’s 50 years of engineering experience combined with constant updating on the latest innovations are the driving force behind solutions for agriculture, mining, recycling, marine, etc.
