WHEEL GEARS

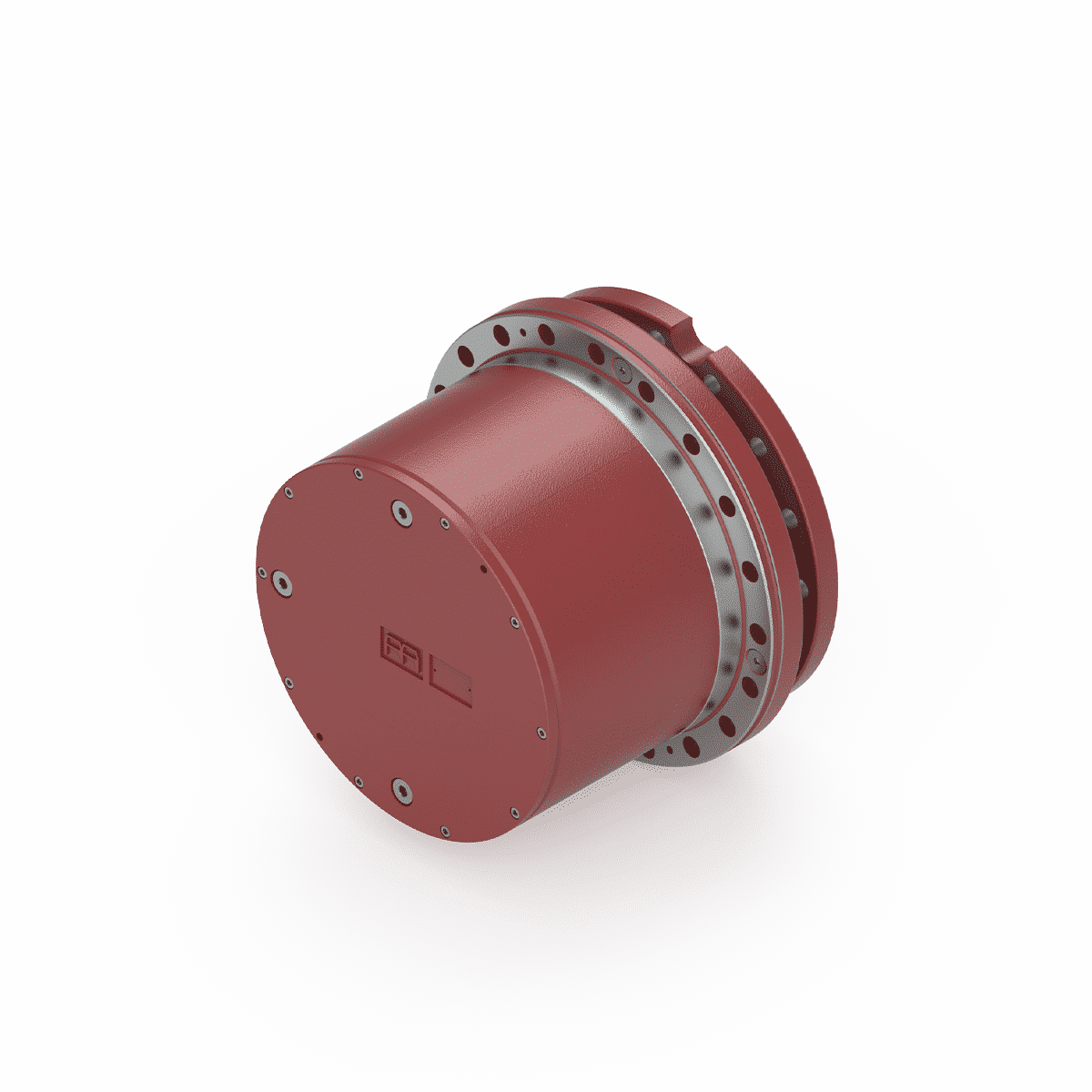

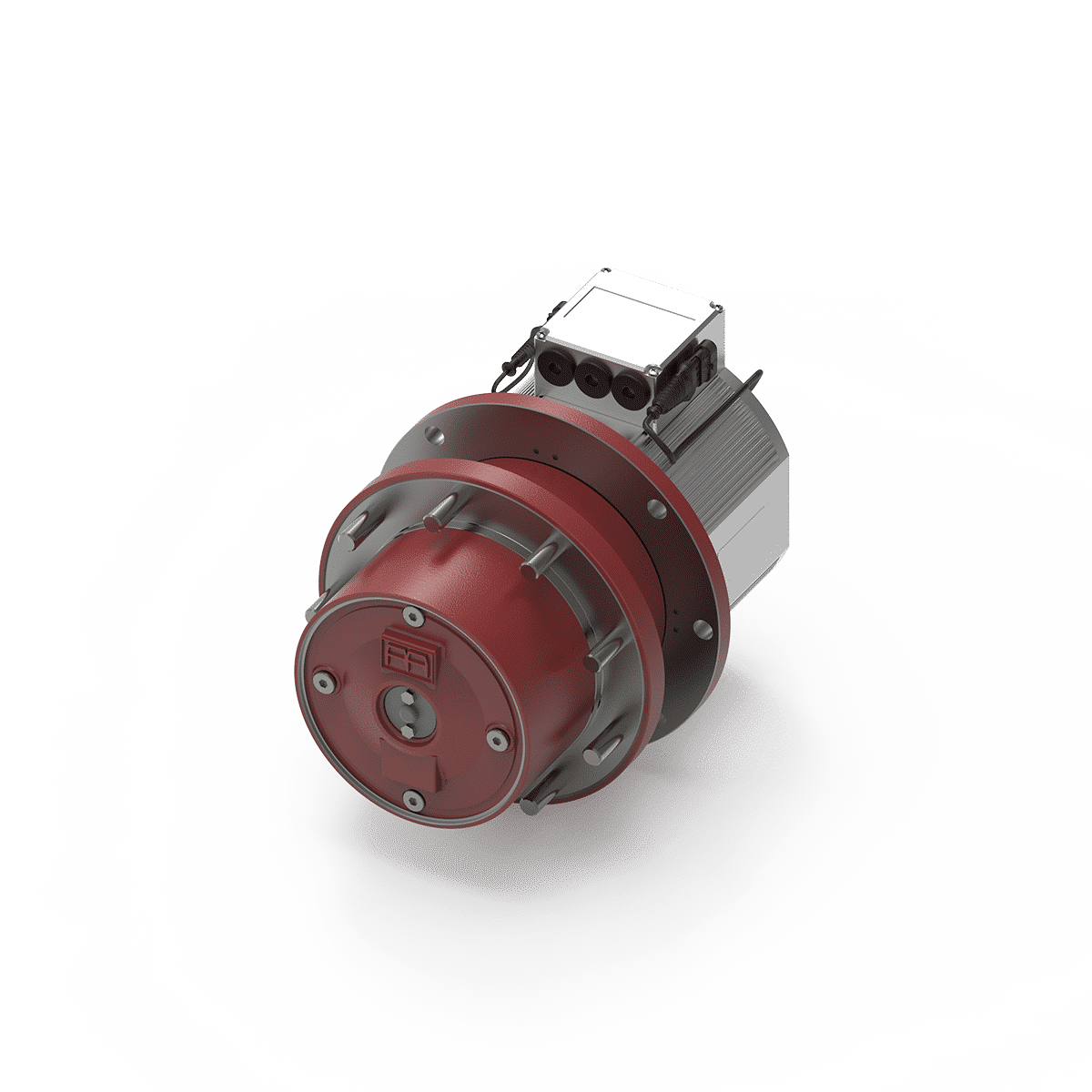

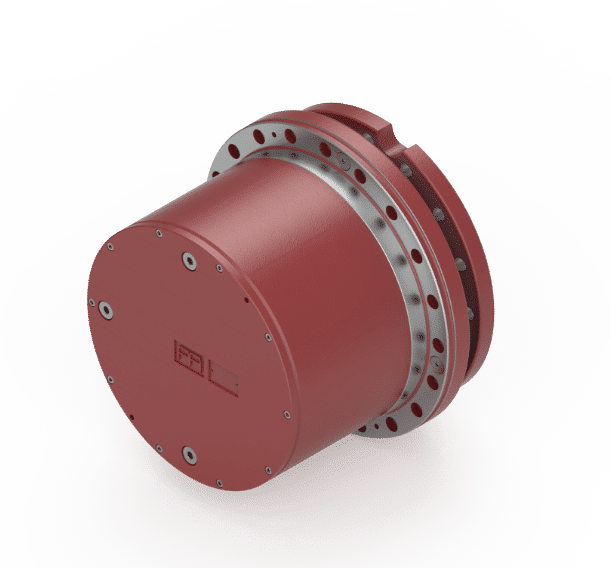

Planetary wheel and track drives

Our wheel and track drives are prepared for hydraulic and electric drives. Our planetary wheels are made from alloy steels to ensure maximum performance combined with very high resistance to shocks and radial and axial stress.

The Reggiana Riduttori wheel gears come in 18 different sizes to provide compact design, high load strength, axial and radial load capacity and a wide choice of ratios.

Download

Download files with all product information
  • Rotating flange with bolts suitable for wheel mounting
  • Rotating flange with threaded holes for tracked vehicle mounting
  • Composition up to 3 reduction stages
  • Compact design
  • Hub and spindle made of high-strength material
  • Suitable for cartridge motors to reduce axial dimensions

T2 MAX range ( 1000 ÷ 5000 Nm ) Ratio range ( 5.27 ÷ 179.44 )

  • Wide range of couplings for hydraulic and electric motors
  • Mechanical disengagement device
  • Built-in multi-disc negative parking brake
  • External dynamic disc or drum brakes
  • Special seals for harsh environmental conditions

Markets

Reggiana Riduttori’s 50 years of engineering experience combined with constant updating on the latest innovations are the driving force behind solutions for agriculture, mining, recycling, marine, etc.
